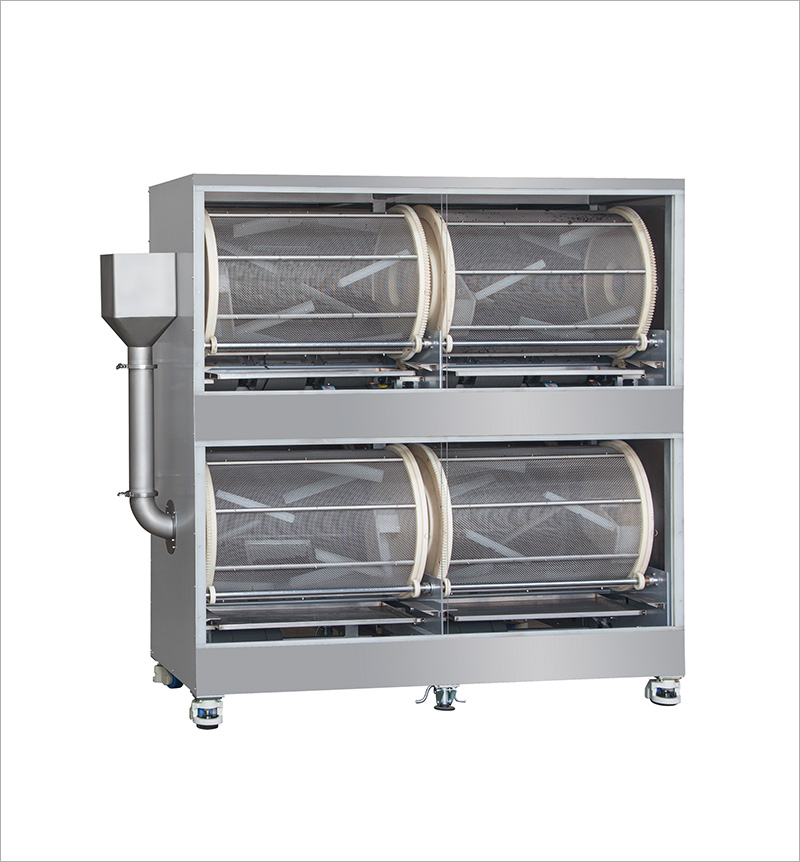

Combined Double-layer Tumble Dryer
There fans for each section of rotary cage,total wind power is 960m³/h×12.Shorten shaping time to save cost.
Main Features:
1. Each group is composed of two layers and two rows including 4 sections cage.
2. Speed between 0~30RPM by frequency control, to suit for different materials dryingprocess.
3. Max. air volume of each cage is 960m3/h x 3, greatly shorten drying time.
4. Can be combined multiple groups on reauest, such as 8/12/16 sections etc.
5. Electrical circuit and fan be fixed bottom of tumble dryer, compact structure, smallfootprint.
6. Optional handling device and cleaning device.
Technical Parameters:
| MODEL | ZL-580B | ZL-580C |
| Rotary cage quantity | 4 sections | 8 sections |
| Rotary cage speed | 30r/min | 30r/min |
| Power supply | 380V 50Hz | 380V 50Hz |
| Fan capacity | 660m³/h×12 | 660m³/h×24 |
| Fan power | 100W×12 | 100W×24 |
| Dimensions | 2500×840×230mm | 4500×840×2300mm |
| Net weight | 800kg | 1600kg |
| Total power | 4.2kw | 8.4kw |
ZL-580A：
ZL-580B：
