Product Overview:
NJP- 2500 series automatic capsule filling machine based on old NJP- 2000 series, designed total enclosure turning table for easy cleaning, single movement for both upper and lower segments with two-lip seal provide a much better sealing performance, a combined air blowing & suction function on segment cleaning station ensures cleaning efficiency on high speed, dust-preventing rubber block on capsule discharge station.
HMI for model C HMI for model H
Note: Model H has the following characteristics
1：Control system be provide with OPC Server.
2：Control system be realized with FDA 21CFR Part 11 e-signature e-recording.
3：Control system be provide with Industrial Ethernet Interface be connected with OPC Client.
4：High-capacity HD can be record message, meet CGMP and FDA.
5：Developed based on the ltalian ESA system.
Technical Parameters
Model | NJP-2500C/H | |
Filling Dosage Form | Powder,Granule or Pellet | |
Capsule Size | Capsule size 00"-5" and safety capsule A-E | |
Max.Output | 150,000 Capsules / Hour | |
Number of Holes | 18 hole | |
Power Supply | 380V 50Hz 3.47kW 220V 60Hz 3.37kW | |
Noise | ≤75dBA | |
Vacuum Degree | -0.02～-0.06 MPa | |
| Compressed Air(clean segment) | Air consumption：4m3/h Pressure：0.3~0.4MPa | |
Dimensions | 1055×1200×1970mm | |
Weight | 1400kg | |

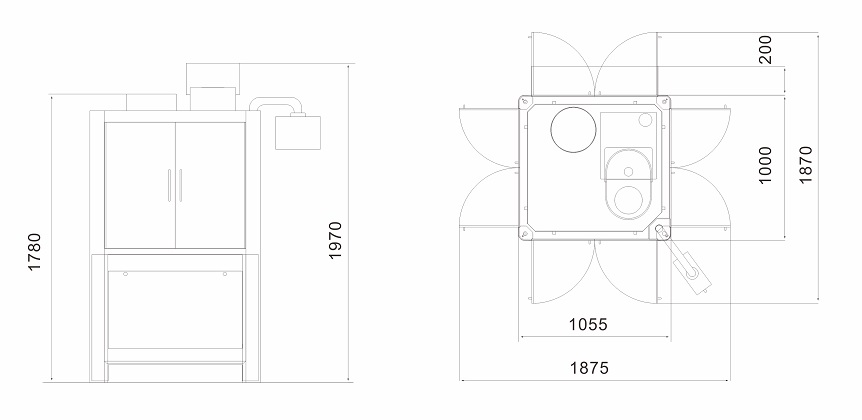

Dimensional Drawing:
