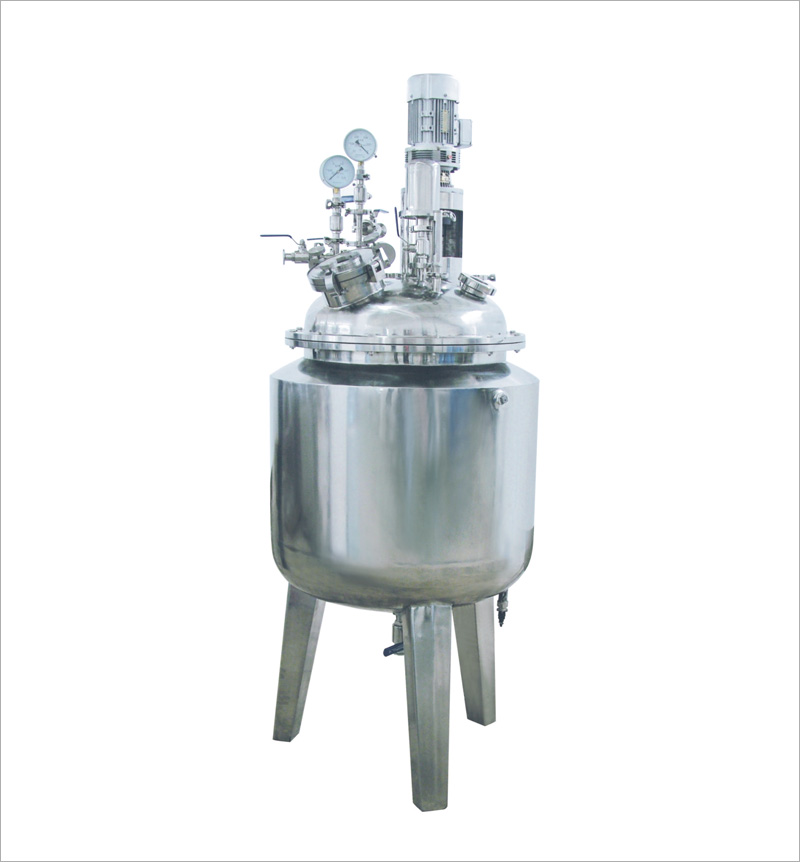

BPY-150 MODEL
Detail
Flange cinnection,easy to clean,holistic heat preservation and economy in sources,three feet support.out put by air pressure for reducing the height of workshop.
Technical Parameters
| MODEL | BPY-150 | BPY-450 | BPY-600 | BPY-800 |
| Efficiency Volume | 150L | 450L | 600L | 800L |
| Jacket Layer Hot Water Volume | 65L | 150L | 200L | 242L |
| Heating Power | 380V 50hz 0.55kw | 380V 50hz 1.1kw | 380V 50hz 1.1kw | 380V 50hz 1.1kw |
| Motor Power | 220V 4.5kw | 220V 9kw | 220V 9kw | 220V 12kw |
| Dimensions | φ800×2100mm | φ1100×2500mm | φ1300×2600mm | φ1300×2700mm |
| Net Weight | 450kg | 900kg | 1200kg | 1300kg |
| Total Power | 5.05kw | 10.1kw | 12kw | 15kw |
