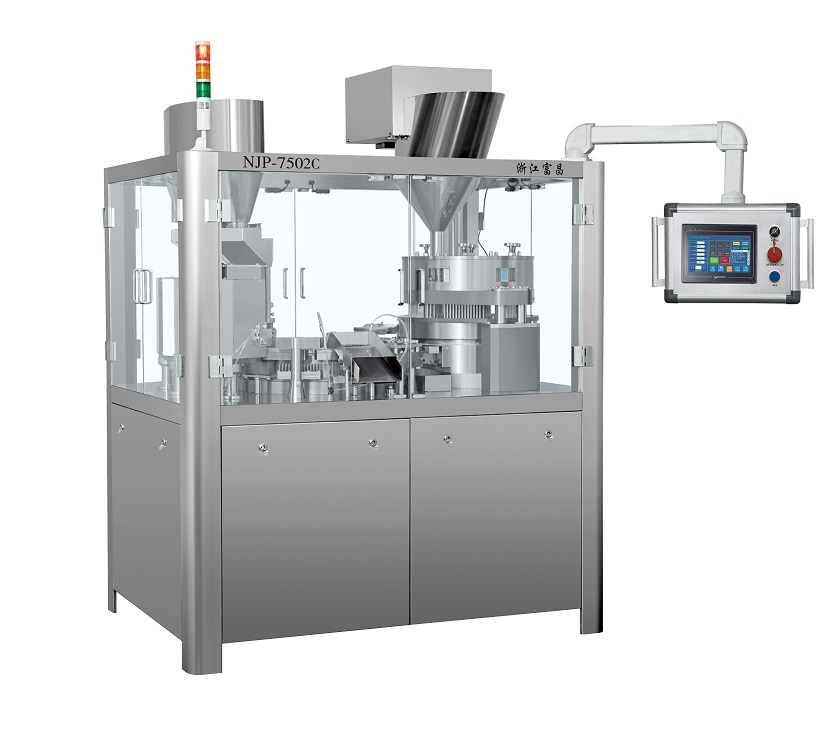

NJP-7500 series is the single-machine high-yield automatic capsule filling machine.
1.Total enclosure turning table for easy cleaning.
2.Single movement for both upper and lower segments with two-lip seal provide a much better sealing performance.
3.A combined air blowing & suction function on segment cleaning station ensures cleaning efficiency on high speed.
4.Dust-preventing rubber block on capsule discharge station.

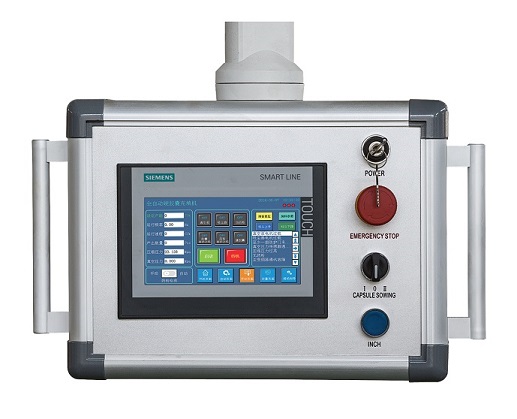

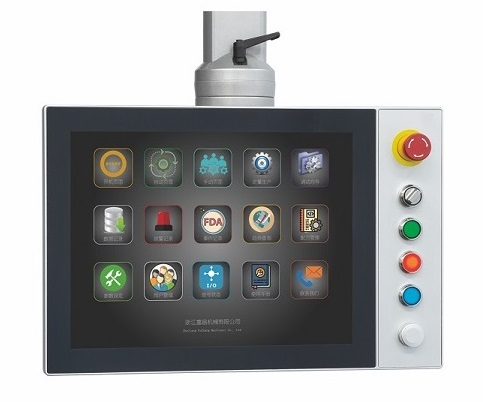

HMI for model C HMI for model H
Note: Model H has the following characteristics
1：Control system be provide with OPC Server.
2：Control system be realized with FDA 21CFR Part 11 e-signature e-recording.
3：Control system be provide with Industrial Ethernet Interface be connected with OPC Client.
4：High-capacity HD can be record message, meet CGMP and FDA.
5：Developed based on the ltalian ESA system.
Technical Parameters:
| MODEL | NJP-7502C/H |
| Filling Dosage Form | Powder,Granule or Pellet |
| Capsule Size | Capsule size 00"-5" and safety capsule A-E |
| Max.Output | 450,000Capsules / Hour |
| Number of Holes | 54 hole |
| Power Supply | 380V 50Hz 8.95kW 220V 60Hz 9.05kW |
| Noise | ≤80dBA |
| Vacuum Degree | -0.02～-0.06 MPa |
| Compressed Air(clean segment) | Air consumption: 12m3/h Pressure：0.3~0.4MPa |
| Dimensions | 1750×1485×2180mm |
| Weight | 3500kg |

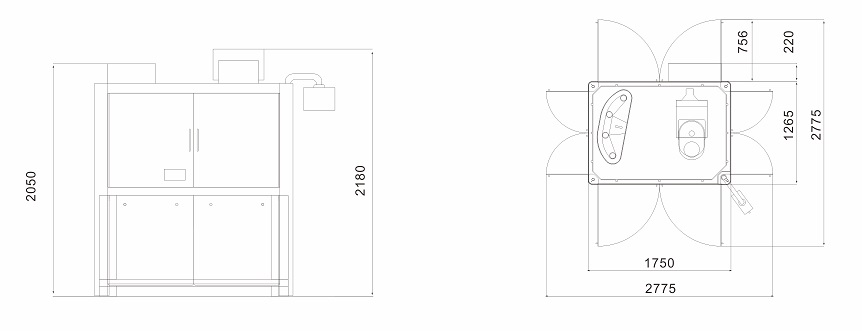

Dimensional Drawing:
